1-dimensional stacking disorder
Periodic Building Unit
| |
| |
Periodic Building Unit (PerBU): |
can layer |
|
| |
| |
Layer symmetry |
P (-6) 2 m |
|
| |
| |
2D cell parameters |
a = 17.29 Å |
b = 17.29 Å |
gamma = 120° |
|
|
| |
| |
References
|
| | | Lee, H., Shin, J., Lee, K., Choi, H.J., Mayoral, A., Kang, N.Y. and Hong, S.B. |
| | | "Synthesis of thermally stable SBT and SBS/SBT intergrowth zeolites" |
| | | Science, 373, 104-107 (2021)
|
| Examples |
 |
The layers are stacked along the [001] direction using the following connectivity patterns
| |

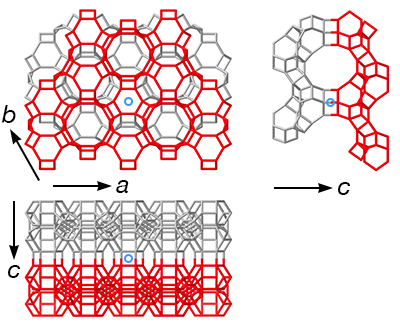

i | none | one inversion center shown as an open circle in the example | |
m | none | mirrow plane shown as a solid line in the example | |
|
| |
* relative to the previous layer
|
| |
| Effect on channel system |
| | The disorder does not block the channel system |
| |
| |
Polymorph SBS |
| |
| |
Cell Parameters: |
hexagonal |
P 63/m m c: (# 194) |
| |
a = 17.1930 Å |
b = 17.1930 Å |
c = 27.3330 Å |
|
| |
α = 90.000° |
β = 90.000° |
γ = 120.000° |
|
| |
Volume = | 6997.3 Å3 |
| |
Framework Density (FDSi): |
13.7 |
| |
Ring sizes (# T-atoms): |
12 8 6 4 |
|
| |
Channel dimensionality: |
Topological (pore opening > 6-ring): 3-dimensional |
|
| |
Maximum diameter of a sphere: |
|
| |
|
that can be included |
11.45 Å |
|
| |
|
that can diffuse along |
a: 7.27 Å |
b: 7.27 Å |
c: 5.72 Å |
|
| |
|
|
addional volume data |
|
| | Composite Building Units: | |
| |
Note: This polymorph corresponds to the ordered framework SBS |
| |
| |
| |
Polymorph SBT |
| |
| |
Cell Parameters: |
trigonal |
R -3 m:H (# 166) |
| |
a = 17.1910 Å |
b = 17.1910 Å |
c = 41.0300 Å |
|
| |
α = 90.000° |
β = 90.000° |
γ = 120.000° |
|
| |
Volume = | 10501.3 Å3 |
| |
Framework Density (FDSi): |
13.7 |
| |
Ring sizes (# T-atoms): |
12 8 6 4 |
|
| |
Channel dimensionality: |
Topological (pore opening > 6-ring): 3-dimensional |
|
| |
Maximum diameter of a sphere: |
|
| |
|
that can be included |
11.17 Å |
|
| |
|
that can diffuse along |
a: 7.34 Å |
b: 7.34 Å |
c: 5.71 Å |
|
| |
|
|
addional volume data |
|
| | Composite Building Units: | |
| |
Note: This polymorph corresponds to the ordered framework SBT |
| |
